We are providing various servo motors and servo controllers for various industrial applications. Also we are providing supervisory
knowledge and maintenance supervision on such systems.
We are providing

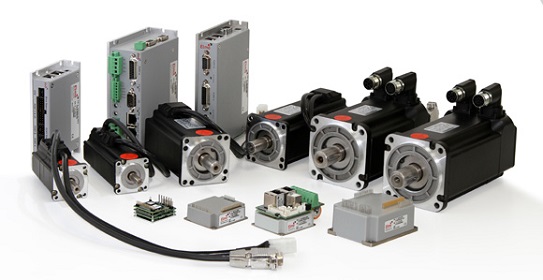

Servo Motors and Motor drives
CNC controllers
Robotic controllers
Stepper motors and drivers
Few of our products with their specifications are shown bellow. You can contact us for more products.
NCT-04 Four Axis Punching CNC Controller CA
×
Special Features
Add T axis die change control and C axis die rotary control.
Max support 36 working position, can customize mould library.
Easy to learn, friendly interface, convenient operation.
Can preview process track and real-time following.
Support twice relocation and clamp avoid function, realize palte no dead zone process.
With single punch, continuous punch, step punch etc. different kinds of punching mode, increase the process efficency.
Can recognize CAD convert code, compatible with usual punching machine software code, support CAM template programming.
With complete self-diagnostic function, internal and external real-time display, it will show alarm if any exception.
DK400A 4 Axis Engraving Controller
×
Special features - DK400A
The engraving control system have 4 axis control X, Y, Z, A aixs, μm interpolation accuracy
Support MasterCAM, Type 3, ArtCam, UG, PROE software for program
Pre treat motion processing with rapid and intelligent speed, program very stable
The max rapid speed can reach 60m/min; Max feed speed can reach 30m/min
Program in common function pattern, is simple and easily to use
Support USB, U disk, RS232 COM communication, help customer realize difference data transmission or software upgrade
Open platform, can customize system for customer’s special requirement
With complete self-diagnostic function, internal and external real-time display, it will show alarm if any unusual arise
Q2-BYG403MD Stepper Driver
×
Special Features - Q2-BYG403MD
can drive 4,6,8 line two-phase stepper motor
super Low vibration and noise
inside software Micro-subdivision technology, low speed&low subdivision can also achieve high subdivision results
counter EMF compensation function,to maintain constant torque when speed increases
Parameter self-adjusting function
Current setting convenient,1.2A∼4.2A can be chosen freely.
high subdivision precision,1-256 can be chosen freely
Impulse response frequency up to 200KHz
Serial communication function,real-time adjustable parameters to meet the high performance requirements
with overvoltage,undervlotage, short circuit protection functions and so on
QS7AA030M AC Servo Drive
×
Special Features
AC sine wave control, smooth torque, no impulse.
2500 line incremental photoelectric encoder, high positional accuracy, rotation positional accuracy can reach 1/10000R.
Speed ration can be as large as 1:5000, has stable torque characteristics from low speed to high speed.
Adopting high speed FPGA processing, motor fastest rotation speed can be 5000RPM.
Rich and complete parameter setting can be configured with different ways of working and operating characteristics to adapt to different requirements.
Possess position, speed and torque control mode, has applications in a wide range
Use intelligent Space Vector control (SVPWM), has much larger torque and much less noise than traditional SPWM
Perfect protection function: over current, overvoltage, over heat, encoder abnormal etc.
SD500 Vertical multi-jointed robot
×
Special features - SD500
8 inch touch display screen
Based on WinCE operating system software, operation easier
Support absolute and incremental type all kinds of domestic and international brand servo motor, including sanyo, panasonic, Tamagawa, etc
Developing specific instruction set for welding, pallet, etc, greatly improve the work efficiency, ensure safe and reliable < option package >
Advanced vibration suppression technology, processing more smoothly
Parameter self-tuning technology needn’t worry about parameters debugging
3D space circular arc interpolation technology
Support multiple communication, network, USB U disk
