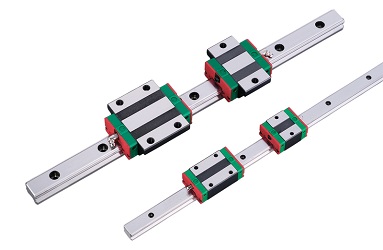

Linear guide-ways provide a type of linear motion that utilizes re-circulating rolling elements between a profiled rail and a bearing block. The coefficient of friction on a linear guide-way is only 1/50 compared to a traditional slide and are able to take loads in all directions. With these features, a linear guide-way can achieve high precision and greatly enhanced moving accuracy.
We are providing several solutions with different capacity so you can select one that best suits for your particular application.

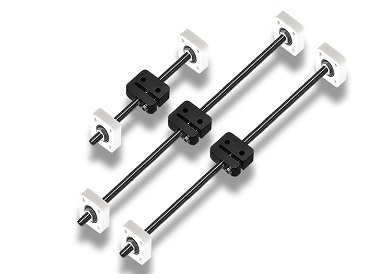

Ball-screws consist of a screw spindle and a nut integrated with rolling elements that cycle through a return mechanism. Ball-screws convert rotary motion into linear motion, and are most commonly used in industrial machinery and precision machines. We provide a wide range of ball-screw configurations to satisfy your special application requirements.
Ball-screws, also called a ball bearing screws, recirculating ball-screws, etc., consist of a screw spindle and a nut integrated with balls and the ball's return mechanism, return tubes or return caps. Ball-screws are the most common type of screws used in industrial machinery and precision machines. The primary function of a ball-screw is to convert rotary motion to linear motion or torque to thrust, and vice versa, with the features of high accuracy, reversibility and efficiency.

Linear Actuators:

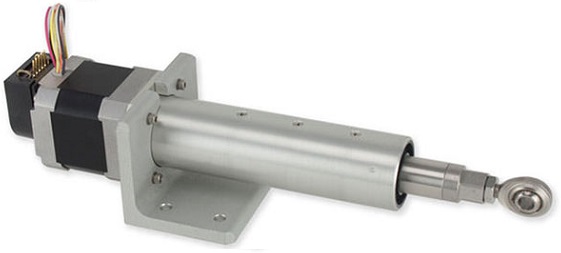

Linear actuators are compact, lightweight and highly flexible products that can be found in a wide range of applications. Linear actuators utilize a gear system that is connected to a screw and is driven by a motor. As the motor operates, the gearing translates to the screw shaft, converting rotary motion into linear motion. We can supply a complete actuator solution that includes actuators, controllers and keypads for a single or multiple axis system.
Linear motors:
Our linear motors are direct drive, plug and play solutions. Linear motors are capable of fast accelerations and high speeds, while providing unmatched precision and accuracy. We offers standardized linear motor designs but customizable options are available. Aside from single axis linear motors, these stages can be combined together to form cross tables or even gantry systems.
We offer a wide range of linear actuator designs to fit your specific application.

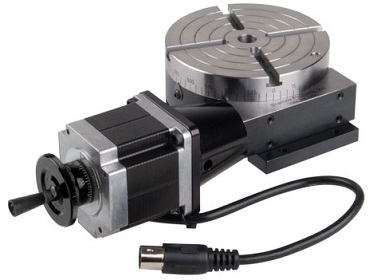

We provide torque motors and rotary tables that ensure excellent acceleration capabilities and high precision uniform movements. Our torque motors and rotary tables are backlash free, extremely rigid, optimized for high torques, have robust dynamics and are especially well suited for tasks in a wide range of automation processes. Various sizes in diameter and height are available with the option to add a servo drive for a complete plug and play solution.
